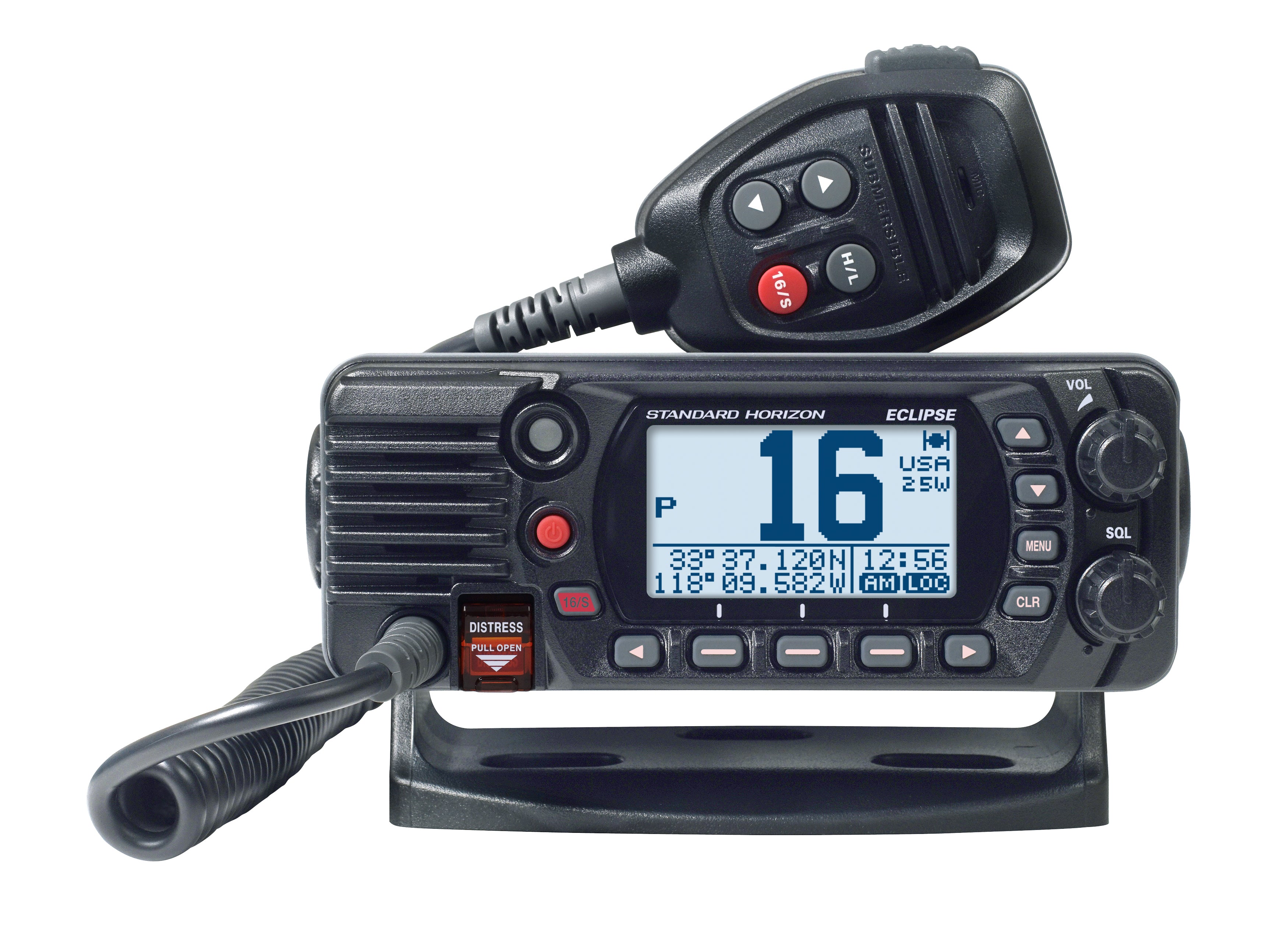

Standard Horizon VHF Radio GX1400B

Hurry up! Only 10 left in stock

Standard Horizon VHF Radio GX1400B

$169.99
Save $0.00
See All Specs

  • Ultra Compact Radio

    Affordable Ultra Compact Class D VHF Radio

  • Controls Made Simple

    Easy access controls right on the microphone

  • GPS Position

    GPS Position when connected to GPS receiver

  • Preset Key

    Simply recall up to 10 favorite channels
Quantity

A CLOSER LOOK

EXPLORE THE STANDARD HORIZON GX1400B

Simple Menu System

Comes standard with an E2O easy to operate Icon/Menu system making it simple

IPX8 Waterproof

Submersible IPX8 rating, operation fully submerged at 4.92 feet for 30 minutes

Nice Large Display

Oversized full dot matrix display makes seeing all the information easy on the eyes

Weather Alert

NOAA weather channel selection with weather alert brought right to your device

Separate Receiver for CH70

Built in separate receiver for CH70 (Receiving DSC Calls) making DSC communication that much more convenient.

All Marine Channels

All USA/International and Canadian marine channels bringing all the channels you need to your radio equipment.

Multiple Scanning Options

Allows for easy monitoring of multiple channels simultaneously improving communication efficiency and making your life easier.

Key Features

Compact and Durable Design

Designed for space-saving installations with rugged construction for reliable performance in harsh marine environments.
Title

25W and 1W Power Output

Provides a high-power 25W output for long-range communication and a 1W low-power option for short-range conversations.
Title

Class D DSC (Digital Selective Calling)

Features built-in DSC Class D for distress calls and position requests, ensuring enhanced safety at sea.
Title

NOAA Weather Alerts

Provides access to NOAA weather channels and alerts for real-time weather updates and storm warnings.
Title

GPS Connectivity

Supports integration with external GPS receivers for automatic transmission of location data in emergencies.
Title

ITU-R M493-13 DSC Compliant

Meets international standards for marine communication, ensuring worldwide compatibility.
Title

IPX8 Waterproof Rating

Submersible in 1.5 meters of water for up to 30 minutes, ensuring durability in wet marine conditions.
Title

Programmable Scanning, Priority Scan, and Dual Watch

Allows for easy monitoring of multiple channels simultaneously, improving communication efficiency.
Title

Large Backlit LCD Display

Easy-to-read display for clear communication of channel information, especially in low-light conditions.
Title

NMEA 0183 Interface

Enables seamless connection to other marine electronics for enhanced functionality.
Title

Easy to Use Interface

Intuitive controls and an easy-to-navigate menu system for straightforward operation.
Title

General Specifications

Model

Standard Horizon GX1400B (Black)
Title

Type

Fixed-mount VHF marine transceiver
Title

Frequency Range
  • Transmit: 156.025 MHz to 157.425 MHz (Marine Band)
  • Receive: 156.050 MHz to 163.275 MHz
Title

Channels

All USA, International, and Canadian marine channels, including NOAA weather channels
Title

Power Supply

13.8V DC ±15%
Title

Current Drain
  • Transmit (25W): 5A
  • Receive: 0.5A (standby)
Title

Operating Temperature Range

-4°F to +140°F (-20°C to +60°C)
Title

Waterproof Rating

IPX8 (submersible in 1.5 meters of water for 30 minutes)
Title

Transmitter Specifications

Power Output
  • High: 25W
  • Low: 1W
Title

Modulation

16K0G3E (FM)
Title

Frequency Stability

±10 ppm
Title

Spurious Emissions

Less than 0.25 μW
Title

Receiver Specifications

Sensitivity (12dB SINAD)

Better than 0.25 μV
Title

Adjacent Channel Selectivity

70 dB
Title

Intermodulation Rejection

70 dB
Title

Audio Output Power
  • 4.5W @ 8Ω (external speaker)
  • 2W @ 4Ω (internal speaker)
Title

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is the power output of the Standard Horizon GX1400B?

The GX1400B offers 25W of high-power output for long-range communication and a 1W low-power mode for short-range transmissions.

Is the Standard Horizon GX1400B waterproof?

Yes, the GX1400B has an IPX8 waterproof rating, meaning it can be submerged in up to 1.5 meters of water for 30 minutes without damage.

Does the GX1400B have DSC (Digital Selective Calling)?

Yes, the GX1400B is equipped with Class D DSC, allowing for emergency distress calls, position requests, and other safety communications.

Does the GX1400B support NOAA weather channels?

Yes, the radio is pre-programmed with NOAA weather channels and provides real-time weather alerts, keeping you updated on changing conditions.

Can the GX1400B be connected to a GPS?

Yes, the GX1400B can connect to an external GPS receiver to automatically send your location during DSC distress calls.

How is the display on the Standard Horizon GX1400B?

The radio features a large backlit LCD display, making it easy to read in both bright daylight and low-light conditions.

Does the GX1400B offer scanning features?

Yes, it supports programmable scanning, priority scan, and dual watch, allowing you to monitor multiple channels at once.

What type of interface does the GX1400B use for connecting with other devices?

The GX1400B is equipped with an NMEA 0183 interface, allowing it to be integrated with other onboard electronics.

Is the GX1400B suitable for international use?

Yes, the radio is ITU-R M493-13 DSC compliant, meeting international marine communication standards for use around the world.

Does the GX1400B have an easy-to-use interface?

Yes, the GX1400B features an intuitive control system with a simple-to-navigate menu, making it user-friendly for both beginners and experienced mariners.
