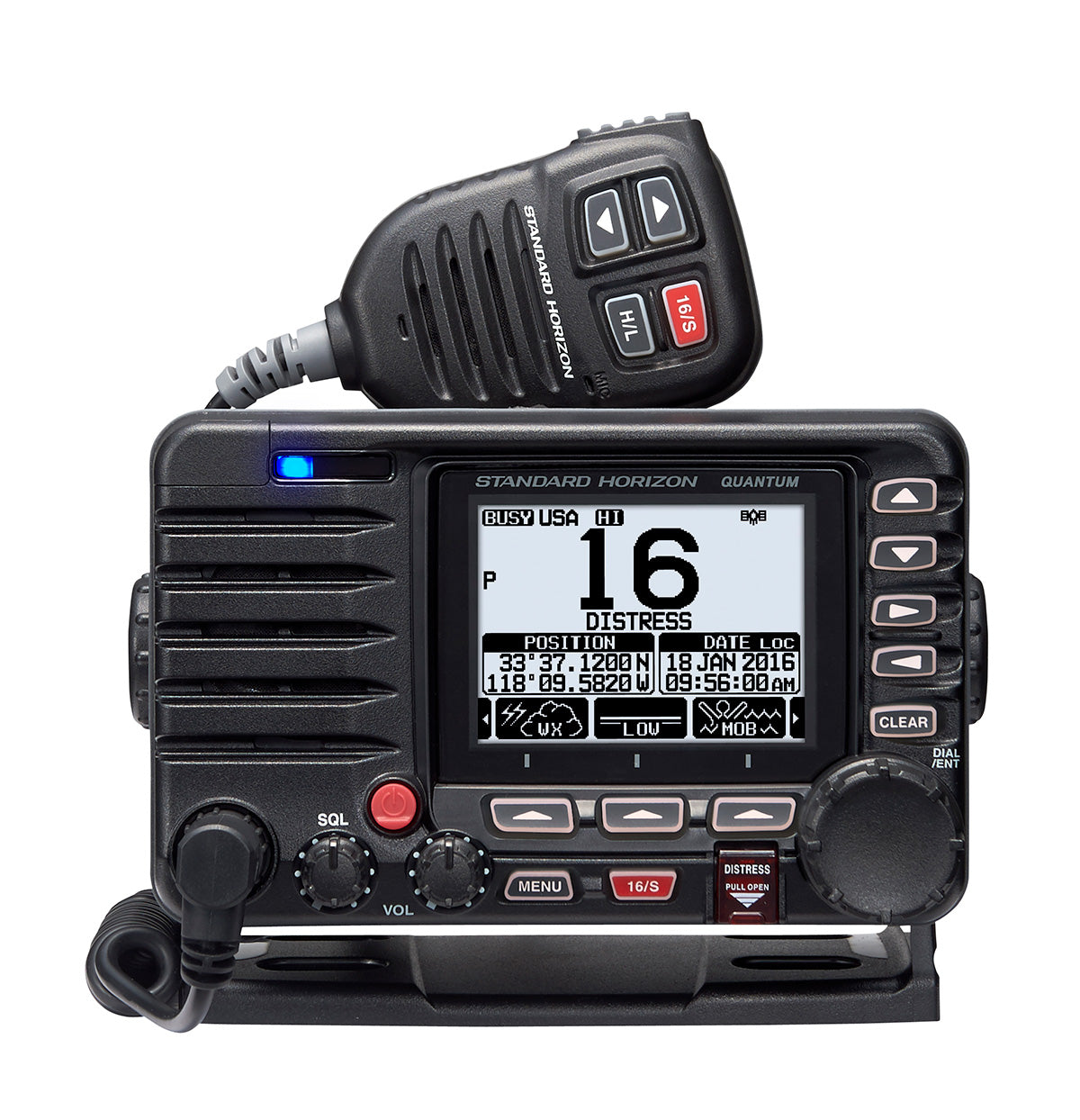

Standard Horizon VHF Radio GX6000

$499.99
Save $0.00
See All Specs
  • E2O

    Easy to Operate Menu System

  • Rotary Channel Knob

    Oversized rotary channel knob with push to enter

  • Easy Info

    GPS compass, waypoint, and GPS status pages

  • Integrated NMEA 2000

    All PGN's for Nav, GPS, AIS, and DSC functions

Quantity

A CLOSER LOOK

EXPLORE THE STANDARD HORIZON GX6000

Optional Microphones

Capable of connecting two optional RAM4 or four Wireless RAM4W

AIS Target Information

Displays AIS target information on the large front panel display

Second Station RAM4W capability

Wirelessly control all radio functions with the interface of the RAM4W microphone

Loud Hailer

25W Loud Hailer with Fog signals - Bells and Whistles with listen back

Class D DSC

Distress calling, position reporting, and other emergency communications, improving safety on the water.

Dual-Channel AIS Receiver

Dual-channel AIS receiver to receive and display AIS information from other AIS-equipped vessels, enhancing situational awareness.

High-Resolution Display

Features a bright, high-resolution color LCD display with adjustable backlighting; making your life easier.

Key Features

Integrated 66-Channel GPS Receiver

Includes a built-in 66-channel GPS receiver for precise location data, enabling DSC functions without an external GPS.

Title

Class D DSC (Digital Selective Calling)

Equipped with Class D DSC for distress calling, position reporting, and other emergency communications, improving safety on the water.

Title

Dual-Channel AIS Receiver

Features a dual-channel AIS receiver to receive and display AIS information (such as position, course, and speed) from other AIS-equipped vessels, enhancing situational awareness.

Title

NMEA 2000 and NMEA 0183 Connectivity

Supports NMEA 2000 and NMEA 0183 interfaces, enabling seamless integration with other onboard marine electronics, such as chart plotters, GPS, and autopilots.

Title

IPX8 Waterproof Rating

Rated IPX8 waterproof, allowing it to be submersible in 1.5 meters of water for 30 minutes, ensuring durability in harsh marine environments.

Title

Clear, High-Resolution Color LCD Display

Features a bright, high-resolution color LCD display with adjustable backlighting, providing excellent visibility in all lighting conditions.

Title

Second Station Compatibility (RAM4X)

Compatible with the Standard Horizon RAM4X Wireless Remote Access Microphone, allowing full control of the radio from a second station on the vessel.

Title

Integrated Voice Recorder

Includes a voice recording function that automatically records the last 30 seconds of incoming calls, so you can replay important communications if needed.

Title

Programmable Scanning, Priority Scanning, and Dual Watch

Offers programmable scanning, priority scanning, and dual watch, enabling users to monitor multiple channels simultaneously.

Title

25W and 1W Power Output Options

Provides 25W high power for long-range communication and 1W low power for short-range communication.

Title

Integrated Voice Scrambler

Built-in voice scrambler for secure communications, compatible with other Standard Horizon VHF radios with scrambling capability.

Title

Noise-Canceling Microphone

Comes with a noise-canceling microphone that ensures clear communication even in noisy environments.

Title

Customizable Channel Names

Allows users to customize channel names for easy identification and faster navigation between frequently used channels.

Title

GPS Compass and Navigation Display

Provides a GPS compass and navigation display, showing position, waypoint navigation, speed over ground, and course over ground.

Title

Intercom Functionality

Supports intercom capability between the main radio and compatible RAM4X remote microphone, allowing communication throughout the vessel.

Title

Built-in PA and Fog Horn

Equipped with public address (PA) functionality and fog horn capability, making it a multifunctional tool for navigation and communication.

Title

General Specifications

Model

Standard Horizon GX6000

Title

Type

Fixed-mount VHF marine transceiver with AIS receiver

Title

Frequency Range

  • Transmit: 156.025 MHz to 157.425 MHz (Marine Band)
  • Receive: 156.050 MHz to 163.275 MHz
Title

Channels

All USA, International, and Canadian marine channels, including NOAA weather channels

Title

Power Supply

13.8V DC ±15%

Title

Current Drain

  • Transmit (25W): 5A
  • Receive (Standby): 0.5A
Title

Operating Temperature Range

-4°F to +140°F (-20°C to +60°C)

Title

Waterproof Rating

IPX8 (submersible in 1.5 meters of water for 30 minutes)

Title

Transmitter Specifications

Power Output

  • High: 25W
  • Low: 1W
Title

Modulation

16K0G3E (FM)

Title

Frequency Stability

±10 ppm

Title

Spurious Emissions

Less than 0.25 μW

Title

Receiver Specifications

Sensitivity (12 dB SINAD)

Better than 0.25 μV

Title

Adjacent Channel Selectivity

70 dB

Title

Intermodulation Rejection

70 dB

Title

Audio Output Power

  • Internal Speaker: 2W @ 4Ω
  • External Speaker: 4.5W @ 8Ω
Title

Audio Distortion

Less than 10%

Title

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is the power output of the Standard Horizon GX6000?

The GX6000 provides 25W high power for long-range communication and 1W low power for short-range communication.

Is the Standard Horizon GX6000 waterproof?

Yes, the GX6000 is IPX8 waterproof, meaning it can be submerged in 1.5 meters of water for 30 minutes, making it durable in marine environments.

Does the GX6000 have Digital Selective Calling (DSC)?

Yes, the GX6000 includes Class D DSC with a dedicated DSC receiver for distress calls, position reporting, and emergency communication.

Does the GX6000 have a built-in GPS?

Yes, the GX6000 has an integrated 66-channel GPS receiver, allowing accurate location tracking without needing an external GPS.

Does the GX6000 have AIS (Automatic Identification System)?

Yes, the GX6000 has a dual-channel AIS receiver that displays real-time data on AIS-equipped vessels, enhancing safety by providing vessel position, course, and speed information.

Is the GX6000 compatible with NMEA 2000?

Yes, the GX6000 supports NMEA 2000 as well as NMEA 0183, allowing seamless integration with other marine electronics like chart plotters and autopilots.

Can the GX6000 be used with a second station?

Yes, the GX6000 is compatible with the Standard Horizon RAM4X Wireless Remote Access Microphone, allowing for full radio operation from a second station on the vessel.

Does the GX6000 have NOAA weather channels?

Yes, the GX6000 includes NOAA weather channels and automatic weather alerts to keep users informed of changing weather conditions.

What scanning features does the GX6000 offer?

The GX6000 offers programmable scanning, priority scanning, and dual watch, allowing users to monitor multiple channels simultaneously.

Is the GX6000 display color?

Yes, the GX6000 features a high-resolution color LCD display with adjustable backlighting for excellent visibility in any lighting condition.

Does the GX6000 have a voice scrambler?

Yes, the GX6000 includes a built-in voice scrambler for secure communication, compatible with other Standard Horizon VHF radios with scrambling capability.

Can I record conversations on the GX6000?

Yes, the GX6000 has an integrated voice recorder that automatically records the last 30 seconds of incoming calls, allowing you to replay important messages.

Does the GX6000 support PA and fog horn functions?

Yes, the GX6000 has public address (PA) capability and a fog horn function with adjustable tones, making it a multifunctional communication tool.

How do I set up the DSC feature on the GX6000?

To use DSC, you need to register for an MMSI number with your local maritime authority and enter it into the radio. Detailed instructions are in the user manual.
