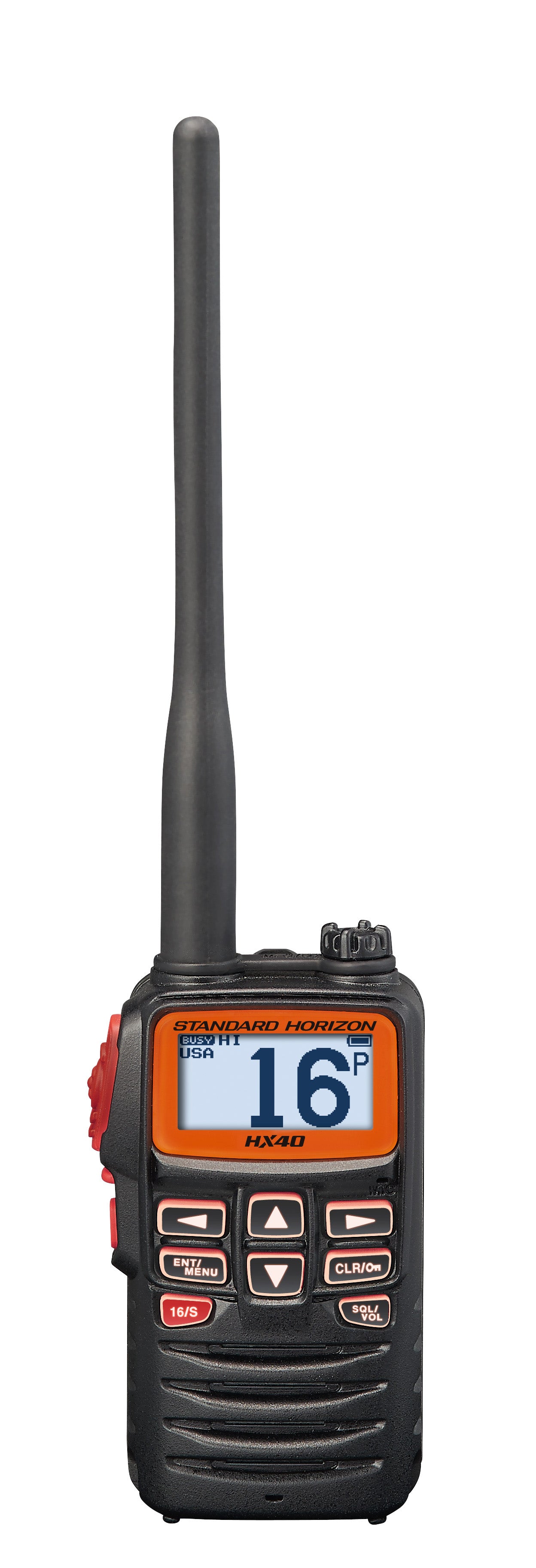

Standard Horizon VHF Radio HX40

Hurry up! Only 106 left in stock

Standard Horizon VHF Radio HX40

$129.99
Save $0.00
See All Specs

  • Loud Audio

    600mW loud audio output makes hearing simple

  • Floating Optional Case

    Floats when fitted into optional case (SHC-29)

  • Simple Menu System

    Menu is easy to operate making life simple

  • 6W Transmit Power

    Comes with selectable 6/2.5/1W transmit power
Quantity

A CLOSER LOOK

EXPLORE THE STANDARD HORIZON HX40

IPX7 Waterproof Standard

Submersible construction meets IPX7 waterproofing standard of 1 meter for 30 minutes.

Recall Up to 10 Favorite Channels

Preset key is used to recall up to 10 channels; makes remembering favorites simple.

Compact Design

Ultra compact case design is engineered to be functional but also save space.

Battery Pack

Built-in lithium polymer battery pack brings power to your radio (7.4V, 1850mAh)

Better Resolution Display

The HX40 comes with a very visible Dot Matrix display with a very clear, very bright backlit display.

Built-in FM Band Receive

The HX40 has an expanded receiver allowing the user to tune in to their favorite FM radio station.

Multiple Scanning Options

Scanning operation and Multi-Watch (Dual Watch and Triple Watch) makes scanning very simple.

Key Features

6W High Power Output

Offers 6W of transmit power for extended communication range, with additional settings of 2.5W and 1W for shorter-range communication.
Title

Compact and Lightweight Design

One of Standard Horizon's most compact models, the HX40 is only 2.05 inches wide, making it easy to carry in a pocket or attach with a belt clip.
Title

Waterproof (IPX7)

Rated IPX7 waterproof, allowing it to be submersible in 1 meter of water for 30 minutes, making it suitable for wet marine environments.
Title

NOAA Weather Channels and Alerts

Pre-programmed with NOAA weather channels and provides automatic weather alerts to keep users informed of changing weather conditions.
Title

Rechargeable Lithium-Ion Battery

Powered by an 1850mAh Lithium-Ion battery, providing long-lasting power for extended operation on the water.
Title

USB Charging Capability

Features USB charging, allowing for convenient recharging with standard USB cables, making it easy to charge on boats, vehicles, or with portable power sources.
Title

Large, Backlit LCD Display

Equipped with a clear, backlit LCD display for easy visibility in both bright sunlight and low-light conditions.
Title

Dual and Triple Watch Functions

Supports dual watch (monitoring Channel 16 and one other channel) and triple watch (monitoring Channel 16 and two other channels simultaneously).
Title

Programmable Scan Function

Allows users to set up programmable scanning to monitor multiple channels, ensuring important communications aren’t missed.
Title

Emergency Quick Channel 16 Access

Dedicated button for instant access to Channel 16, the international distress and safety channel.
Title

Key Lock Function

Includes a key lock feature to prevent accidental button presses, making it ideal for active environments.
Title

Battery Life Indicator

Displays remaining battery life, allowing users to monitor power levels and plan accordingly.
Title

Technical Specifications

  • General Specifications

  • Transmitter Specifications

  • Receiver Specifications

General Specifications

Model

Standard Horizon HX40

Type

Handheld VHF marine transceiver

Frequency Range

Transmit: 156.025 MHz to 157.425 MHz (Marine Band)

Receive: 156.050 MHz to 163.275 MHz

Channels

All USA, International, and Canadian marine channels

NOAA weather channels with alerts

Power Supply

Internal rechargeable Lithium-Ion battery (3.7V, 1850mAh)

Operating Temperature Range

-4°F to +140°F (-20°C to +60°C)

Waterproof Rating

IPX7 (submersible in 1 meter of water for 30 minutes)

Transmitter Specifications

Power Output

High: 6W

Medium: 2.5W

Low: 1W

Modulation

16K0G3E (FM)

Frequency Stability

±10 ppm

Spurious Emissions

Less than 0.25 μW

Receiver Specifications

Sensitivity (12 dB SINAD)

Better than 0.25 μV

Adjacent Channel Selectivity

70 dB

Intermodulation Rejection

70 dB

Audio Output Power

Internal Speaker: 600 mW

Audio Distortion

Less than 10%

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is the power output of the Standard Horizon HX40?

The HX40 provides 6W high power for extended range and 2.5W or 1W settings for shorter-range communication.

Is the HX40 waterproof and does it float?

Yes, the HX40 is IPX7 waterproof, meaning it can be submersed in 1 meter of water for 30 minutes. However, it does not float.

How compact is the HX40?

The HX40 is one of Standard Horizon's most compact models, measuring only 2.05 inches wide and designed to fit comfortably in a pocket.

Does the HX40 have NOAA weather channels?

Yes, the HX40 includes NOAA weather channels and provides automatic weather alerts to keep users informed of changing conditions.

What type of battery does the HX40 use and how long does it last?

The HX40 is powered by a 1850mAh Lithium-Ion rechargeable battery, providing up to 10 hours of operation depending on power settings and usage.

Does the HX40 support dual and triple watch functions?

Yes, the HX40 supports dual watch (monitoring Channel 16 and one other channel) and triple watch (monitoring Channel 16 and two other channels simultaneously).

Can the HX40 scan multiple channels?

Yes, the HX40 includes a programmable scanning function that allows users to monitor multiple channels for communication and safety.

Does the HX40 have a quick access button for emergencies?

Yes, the HX40 has a dedicated button for quick access to Channel 16, the international distress and safety channel.

Is the display on the HX40 backlit?

Yes, the HX40 has a backlit LCD display, making it easy to read in both bright sunlight and low-light conditions.

Does the HX40 support USB charging?

Yes, the HX40 is equipped with USB charging capability, allowing users to charge it conveniently with standard USB cables.

Does the HX40 have a key lock function?

Yes, the HX40 includes a key lock feature to prevent accidental button presses, which is helpful in active environments.

Is the HX40 suitable for use on small boats or personal watercraft?

Yes, the HX40's compact size, waterproof rating, and power options make it ideal for small boats, kayaks, and other personal watercraft.

Can I customize channels on the HX40?

Yes, users can customize channel names on the HX40 for easier identification of frequently used channels.
